MSI MPG A1000G PCIE5 Power Supply

Physical Design, Modular Cabling & Build Quality

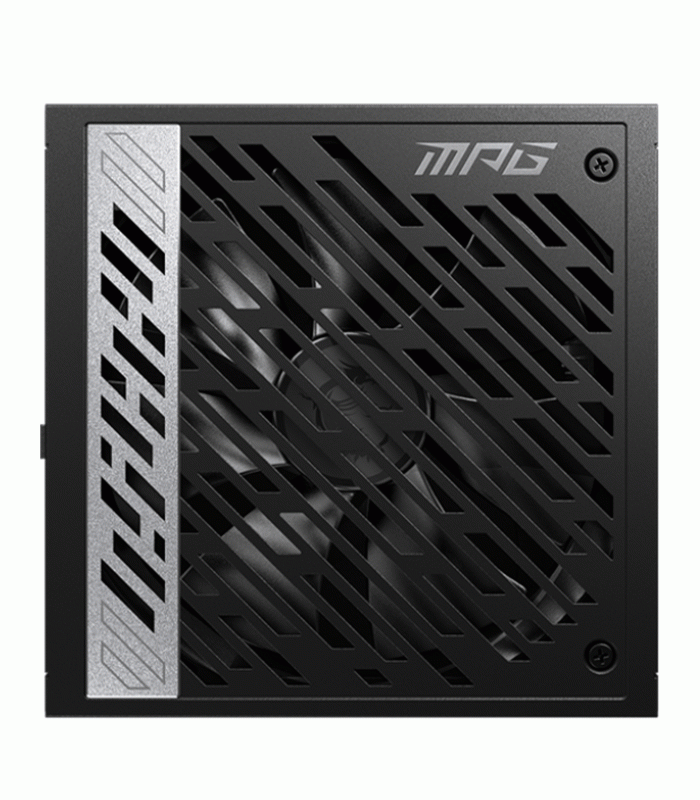

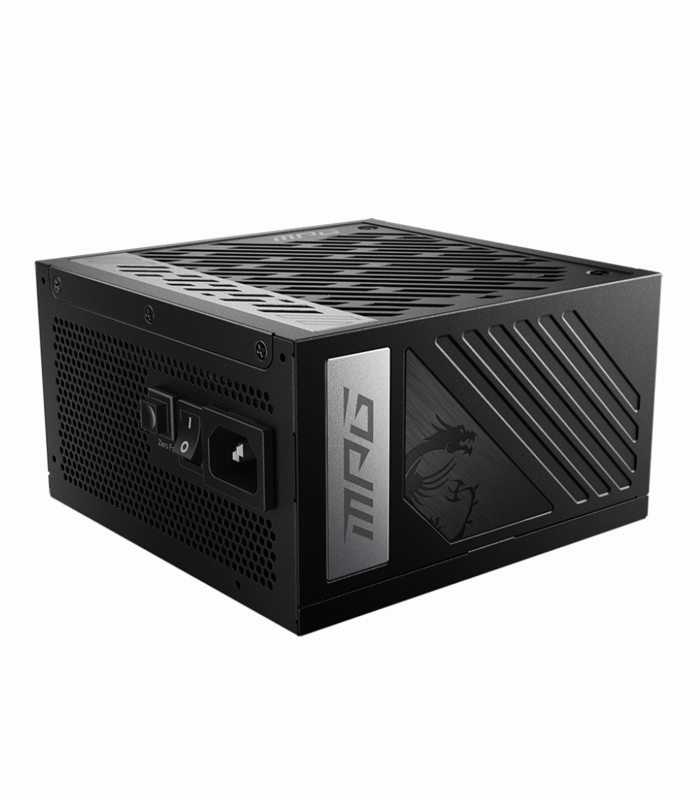

From the outside, the A1000G PCIE5 is relatively compact for a 1,000 W unit—about 150 mm in length—which helps in more compact ATX cases. The chassis is finished in a matte black powder coated surface, with decorative embossed geometrical patterns and magnetic side panels (in MSI’s styling) that can be flipped for different mounting orientations.Inside, MSI uses a 135 mm Hong Hua fluid dynamic bearing (FDB) fan for cooling.  The fan has a fairly aggressive profile, meaning as load increases, the fan ramps more quickly to maintain internal temperatures. In the packaging, MSI provides only the essentials: the PSU unit, power cable, and mounting screws—no extra cable bags or accessory extras. Cabling is fully modular. The PSU supports detachable connections for all DC rails, including the 24-pin main ATX cable, CPU/EPS, SATA, Molex, and PCIe connectors.  Among the modular outputs is the native 16-pin PCIe 5.0 (12VHPWR) connector for modern GPUs, capable of delivering up to 600 W to the GPU.  There is also support for multiple 8-pin PCIe connectors and EPS/CPU connectors to power high-end systems. In build quality, reviews note solid soldering and component quality, use of 105 °C rated Japanese capacitors, and good layout and spacing of heatsinks internally.  The design attempts to balance compactness with thermal headroom and noise control.

Electrical & Power Specifications

Electrically, the A1000G PCIE5 is a single-rail +12 V design, meaning the entire 12 V output is delivered from a unified rail rather than multiple splits. It delivers 83.5 A on the 12V rail (corresponding to roughly 1,000 W) at 50°C rating.  The 3.3V and 5V rails are rated up to 22A combined, allowing up to 120 W on minor rails. The PSU is certified 80 PLUS Gold, so its efficiency is expected to be high (typically ~90%+ at 50% load) under ideal conditions. However, performance reviews show that the efficiency degrades somewhat at very high loads (> ~600W), as heat and losses rise. TIA overcurrent, overvoltage, overtemperature, short circuit (OCP, OVP, OTP, SCP) and overpower protections are built in. Tom’s Hardware reports that the unit passed all protection tests, though the thresholds for OCP/OPP were found to be “slack” (i.e. allowed higher overcurrent before shutdown) in some cases. Transient response and voltage regulation are good—Tom’s measured low ripple (e.g. 22 mV on 12V line) and tight voltage regulation (±0.8% on the 12V rail).  At cold ambient conditions the unit performs well; at elevated temperatures tests (45 °C ambient) the unit’s efficiency and internal losses are more stressed. One of the more modern features is Zero RPM / 0% RPM mode: below ~40% load, the fan can shut off entirely to allow silent operation and reduce noise and wear.  MSI claims compliance with ATX 3.0 / PSDG (Power Supply Design Guide), including support for GPU power excursions (i.e. very short power spikes that modern GPUs may demand) and total system excursions. Another spec is that the PSU is rated for full continuous output at up to 50 °C ambient, which makes it more robust for warm environments.
