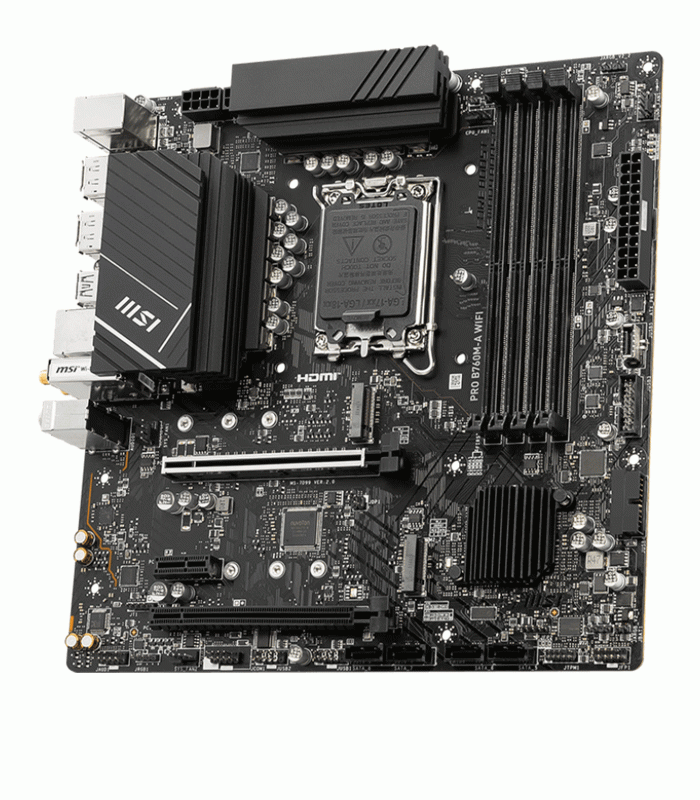

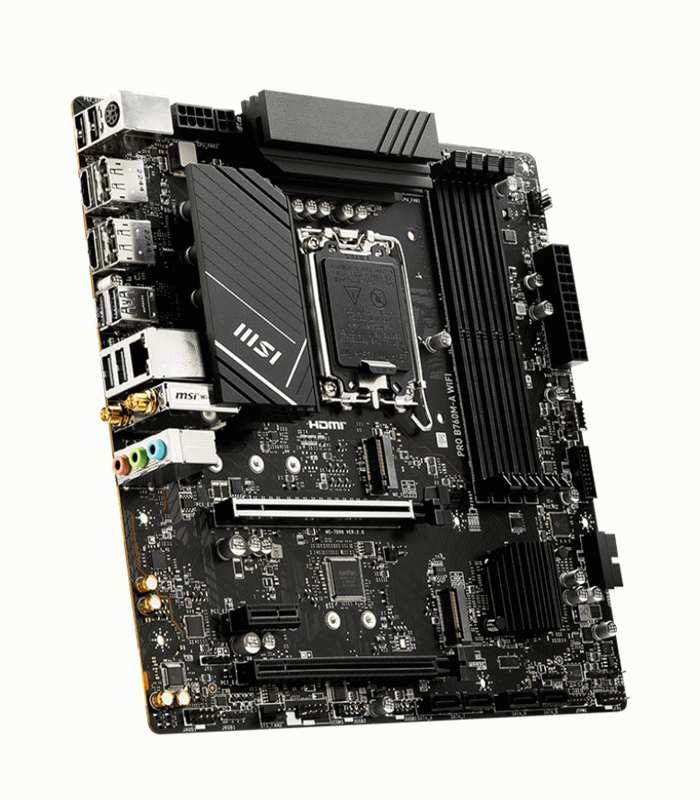

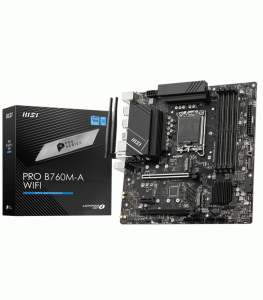

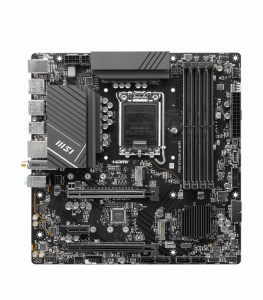

MSI PRO B760M-A Wifi Intel MATX DDR5 Motherboard

Features

The MSI PRO B760M-A WiFi DDR5 is based on Intel’s B760 chipset, which occupies the “mainstream” tier just beneath the Z-series. It supports LGA 1700 CPUs, meaning it is compatible with Intel’s 12th, 13th, and 14th Generation Core, Pentium Gold, and Celeron processors. Because it is not a Z-series board, it does not support manual core overclocking (i.e. adjusting multipliers beyond base/Turbo limits), but it still supports Intel’s built-in performance features like Turbo Boost, Thermal Velocity Boost, and Efficient cores. The B760 platform also typically offers more PCIe and I/O flexibility compared to older B-chipsets, often reusing features previously gated behind Z-series boards.In terms of memory, the PRO B760M-A WiFi supports DDR5 memory, up to 6800 + MHz (overclocked) in certain configurations. Specifically, the spec sheet indicates it supports DDR5 speeds: 6800+, 6600(OC), 6400(OC), 6200(OC), 6000(OC), 5800 (JEDEC), 5600 (JEDEC), 5400, 5200, 5000, 4800. It features four DIMM slots, allowing up to 256 GB memory capacity. For display output (if you use a CPU with integrated graphics), it provides HDMI 2.1 and DisplayPort 1.4 outputs for up to 4K@60Hz. Thus, the PRO B760M-A WiFi aims to combine modern I/O, memory features, and midrange performance, while avoiding some of the more premium Z-series extras. It is ideal for users seeking a modern DDR5, WiFi-enabled platform without the full price of a flagship.

Power Delivery & Thermal Design

An essential part of any motherboard is its ability to reliably supply current to the CPU under load. The PRO B760M-A WiFi implements a 12 + 1 Duet Rail Power System (i.e. 12 Vcore phases + auxiliary phases) with P-PAK DrMOS modules and dual power connectors (8-pin + 4-pin) to ensure stable power for modern CPUs. This design supports MSI’s Core Boost and Memory Boost features, which optimize the power path to deliver clean voltage under varied loads. To manage heat, MSI offers extended heatsinks on the VRMs, 7W/mK MOSFET thermal pads, and choke thermal pads to enhance heat transfer from critical components into the heatsink structure. The board uses a 6-layer PCB with 2 oz thickened copper traces to help with thermal and signal integrity. Cooling support includes multiple fan headers, a dedicated pump fan header (for AIO / liquid cooling), and MSI’s Frozr AI Cooling that dynamically controls fans based on CPU and GPU temperatures. The design is engineered to maintain stability and prevent throttle under sustained workloads—essential for both gaming and productivity tasks.

Expansion & Storage Capabilities

Even though it is a micro-ATX board, the PRO B760M-A WiFi offers a versatile set of expansion and storage options. It features two PCIe x16 slots, one driven directly by the CPU (PCIe 4.0 x16) and another via chipset (operating at x4 mode). Also included is a PCIe x1 slot for smaller add-on cards. For storage, it provides two M.2 slots, both supporting PCIe 4.0 x4. The first M.2 (M.2_1) is directly from CPU lanes. The second (M.2_2) is from chipset and supports PCIe or SATA mode.Additionally, four SATA III 6Gb/s ports support traditional SSDs and HDDs, with RAID 0/1/5/10 support for SATA. This level of storage and expansion makes the board flexible enough for gaming rigs, content creation machines, or even compact productivity systems—users can install fast NVMe drives, SATA drives, and expansion cards without feeling severely limited.

Networking & Wireless Connectivity

One of the key differentiators of the PRO B760M-A WiFi is its integrated wireless and wired network support. It features Intel Wi-Fi 6E and Bluetooth 5.3 via a pre-installed M.2 Wi-Fi/Bluetooth module in the Key-E slot. This allows for connectivity on the 2.4 GHz, 5 GHz, and 6 GHz bands (where regulation allows), giving users access to low-latency, high-bandwidth wireless performance. The system supports MU-MIMO, 160 MHz channels, and theoretical speeds up to 2.4 Gbps (depending on configuration) over Wi-Fi. For wired networking, the board includes a Realtek RTL8125BG 2.5G Ethernet controller. This gives better-than-gigabit LAN performance, which is especially beneficial in LAN settings, network-attached storage, or high-speed internet connections. In short, the PRO B760M-A WiFi covers both modern wireless and robust wired connectivity without needing add-on cards.

Audio, I/O and Front Connectivity

The audio subsystem uses the Realtek ALC897 codec, offering 7.1-channel high-definition sound—adequate for gaming, multimedia, and general use. MSI also includes “Audio Boost” features, isolating the audio signal traces to minimize interference from other board circuits. Rear I/O includes a good spread of ports: USB 3.2 Gen 2 (10 Gbps) Type-A, USB 3.2 Gen 1 (5 Gbps) Type-A, USB 2.0, HDMI 2.1, DisplayPort 1.4, 2.5G LAN, Wi-Fi antenna connectors, and audio jacks. For front-panel connectivity, the board offers headers including USB Type-C, USB 3.2 Gen 1, USB 2.0, RGB headers, and standard system headers. Also notable is the “Intel Turbo USB 3.2 Gen 2” feature, ensuring stable high-speed USB performance under demanding loads. This combination of I/O ensures that users have access to modern external device speeds and connectivity without needing extra controllers or cards.

BIOS, Software & Overclocking Features

The PRO B760M-A WiFi uses MSI’s Click BIOS 5, offering both EZ Mode and Advanced Mode interfaces. Users can tune fan profiles, enable XMP memory profiles, adjust voltages, and more. Because B760 doesn’t open CPU multiplier overclocking, focus is on memory overclocking, power delivery tuning, and fan control.Memory tuning is assisted by XMP 3.0 (Extreme Memory Profile) support, making it easy to enable higher DDR5 speeds with presets. The BIOS also supports features like Memory Try It! for alternative stability profiles. MSI Center software in Windows complements BIOS functionality—allowing adjustments of fan curves, RGB lighting (through Mystic Light), LAN priority settings (LAN Manager), and system diagnostics.For tuning, the board supports features like Load Line Calibration, voltage control, etc., enabling enthusiasts to eke stable performance from their memory modules or adapt performance for heavy workloads. The firmware and software together produce a user-friendly yet powerful environment for customization.

Real-World Use, Strengths & Limitations

In real-world scenarios, the MSI PRO B760M-A WiFi DDR5 performs admirably for gaming, productivity, and hybrid workloads. With a mid-to-high-tier Intel CPU and fast DDR5 RAM, the board delivers consistent frame rates, stable multitasking, and efficient thermal response. The 2.5G LAN and Wi-Fi 6E give connectivity headroom for multiplayer gaming, large downloads, streaming, and remote work.One of the board’s strengths is its balanced approach—it offers many modern features (DDR5, Wi-Fi 6E, PCIe 4.0, strong power delivery) without entering the premium price bracket. It is especially well-suited to compact builds (mATX) where full ATX boards may not fit. The multi-fan and pump support ensures cooling scalability, from air-cooled setups to AIO systems.However, it does have limitations. Because the B760 platform is not intended for CPU overclocking, users wanting to push core multipliers must look to Z-series boards. Also, the VRM design—while robust for its class—is not as lavish as flagship yield boards, so sustained ultra-heavy loads may push thermal boundaries. Additionally, integrated GPU users are limited to 4K@60Hz on outputs, which may restrict certain usage cases.Still, for many users—gamers, creators, and professionals—the trade-offs are acceptable, given the strong feature set relative to price. The PRO B760M-A WiFi delivers a compelling mix of performance, connectivity, and versatility.

Recommended Use Cases & Ideal Scenarios

The PRO B760M-A WiFi DDR5 is well-suited to several types of users and builds:Compact Gaming Builds: As an mATX board, it fits nicely in smaller cases while offering high-speed DDR5, PCIe 4.0 GPU lanes, and robust network connectivity.Workstation for Creative Tasks: Users doing video editing, 3D modeling, or software development can benefit from fast NVMe drives, multiple DIMMs, and stable power delivery.All-in-One Home / Office PC: The integrated Wi-Fi 6E and 2.5G LAN, combined with strong I/O, make it ideal for users who want a single board handling connectivity, storage, display, and performance without add-ons.Future-Proof Build Base: DDR5, modern I/O, and support for upcoming Intel CPUs make this board a solid foundation for future upgrades without needing a full platform replacement.Builders should match it with a good cooling solution (air or AIO) to ensure the VRMs and components remain within safe thermal limits under load. Also, selecting high-quality DDR5 modules and enabling XMP profiles helps get the most out of memory performance.
